By Beeline Connect
24 Months Warranty
By Beeline Connect
750W 80Nm Motor
350 lbs Max Load
26" x 4.0" Kenda Tires
Aluminium Alloy Frame
23 MPH Max Speed

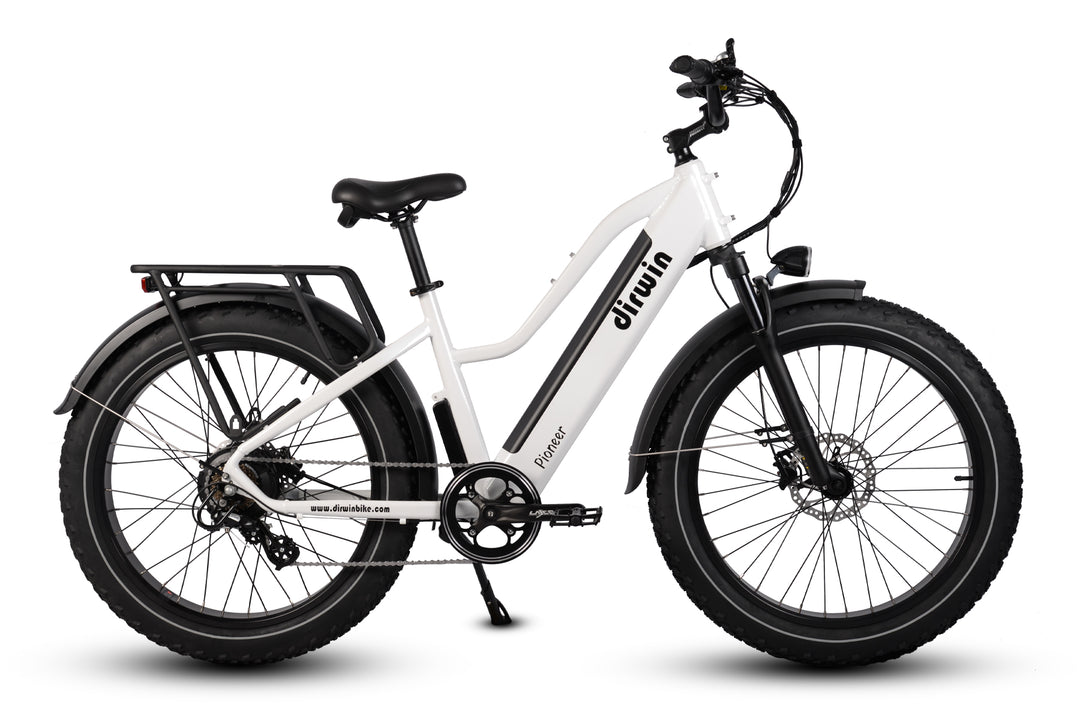

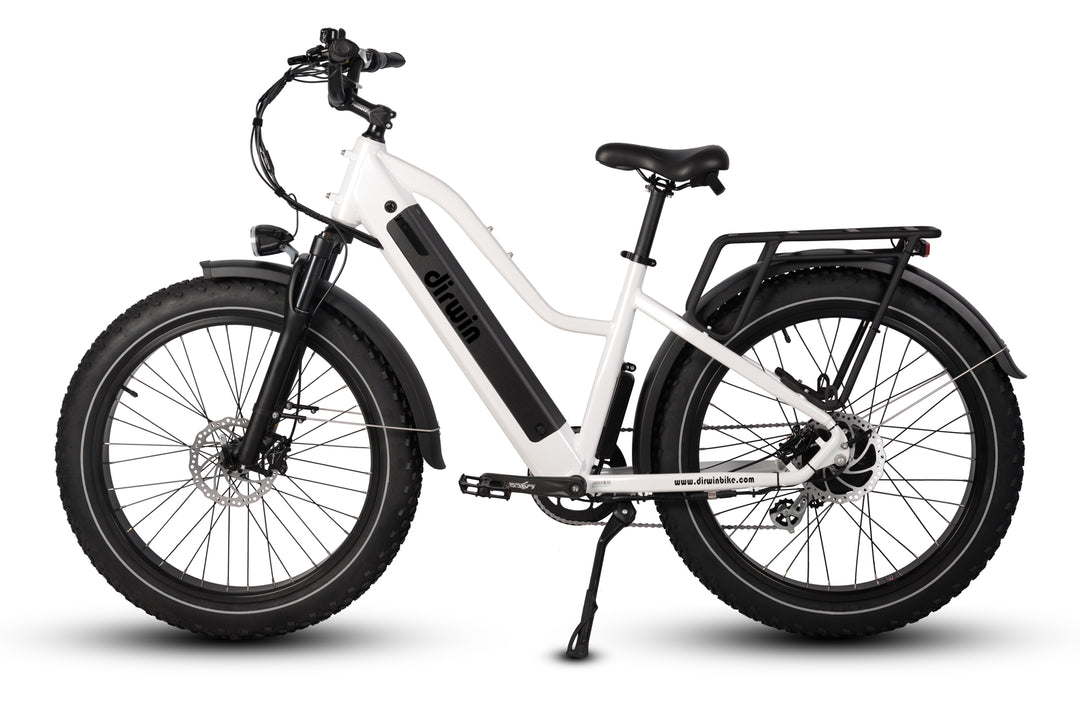

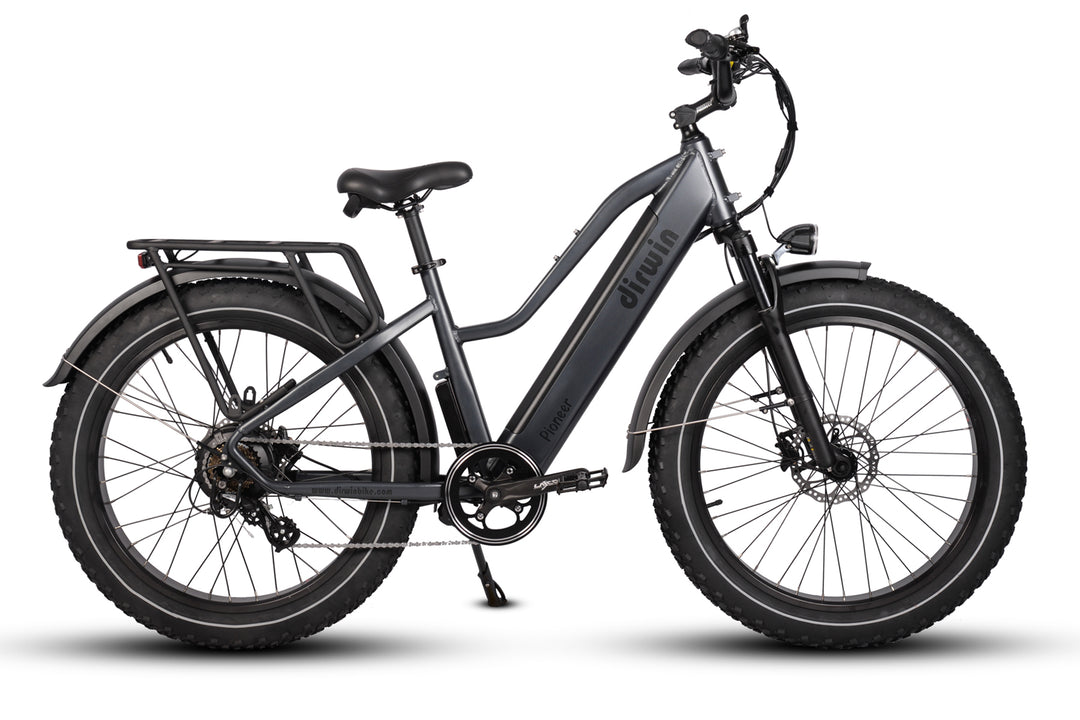

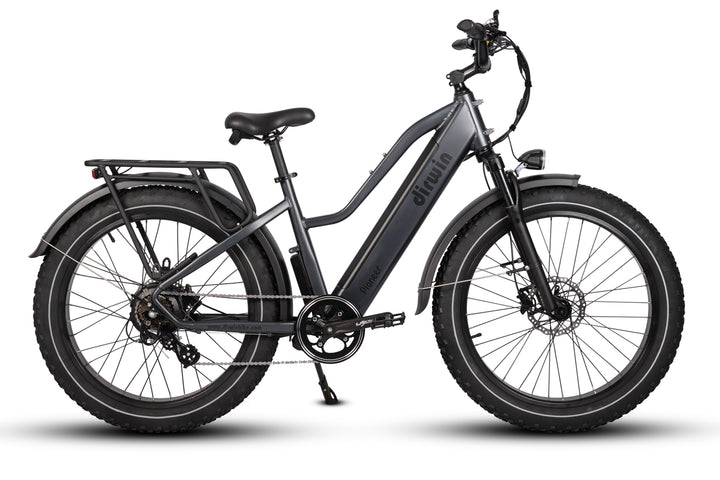

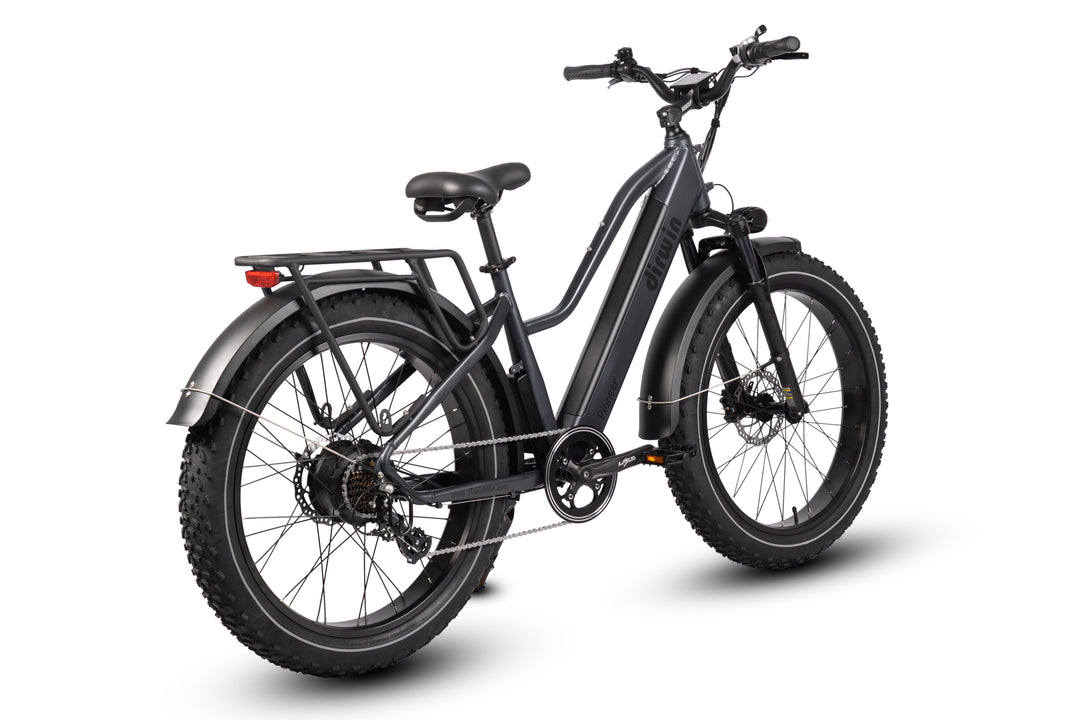

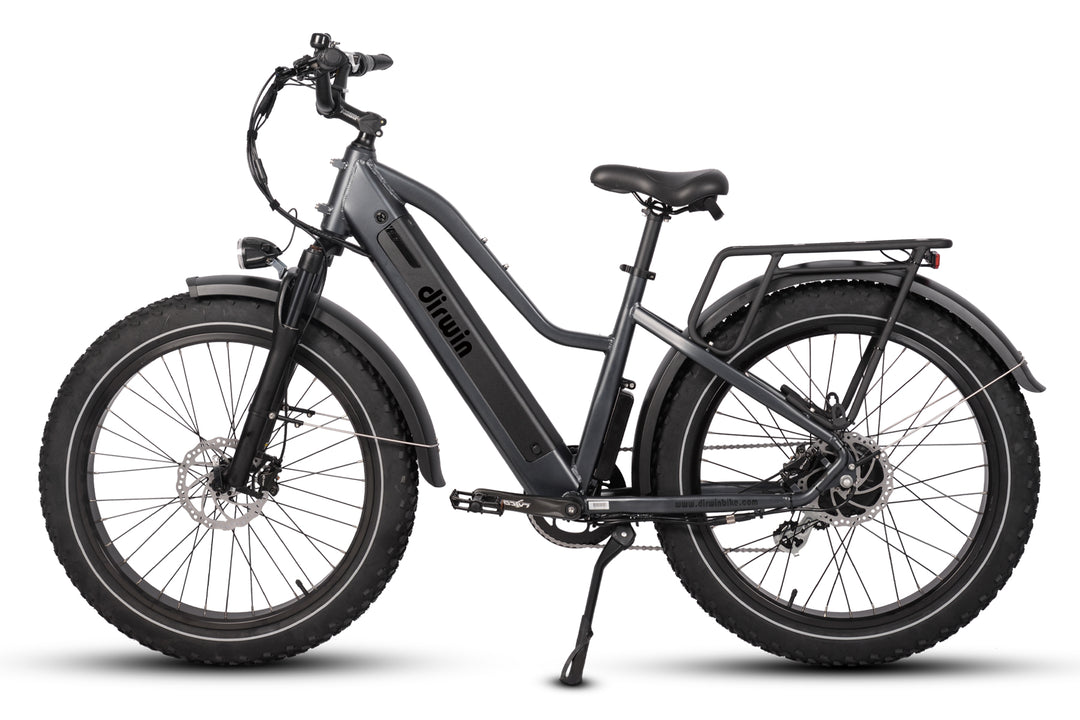

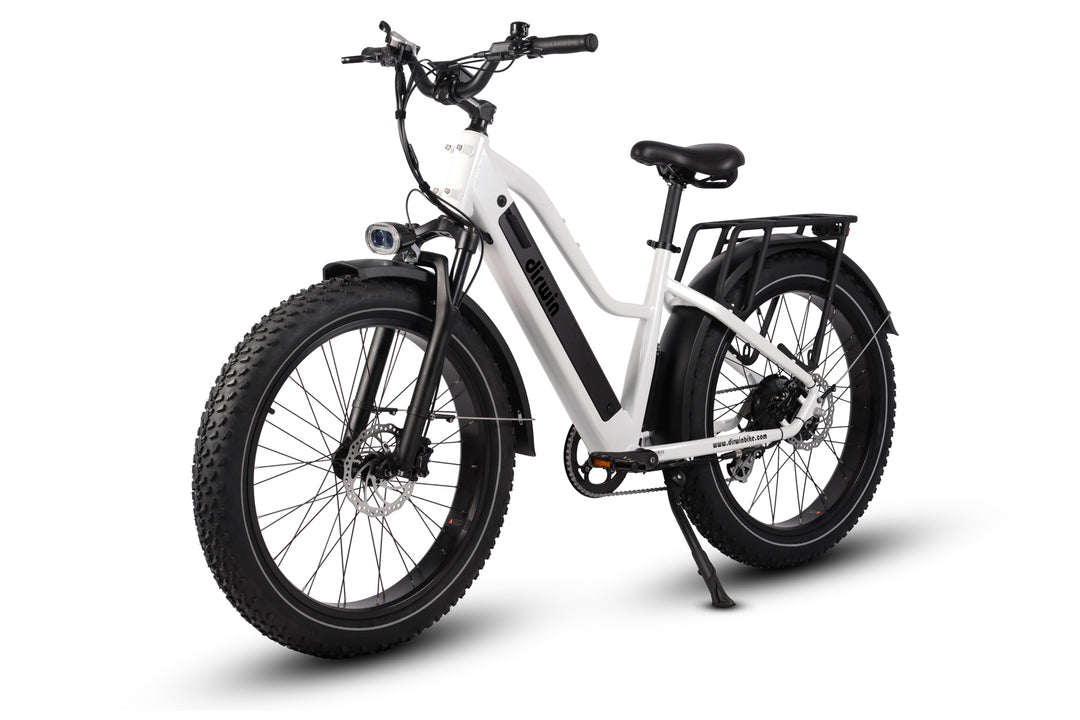

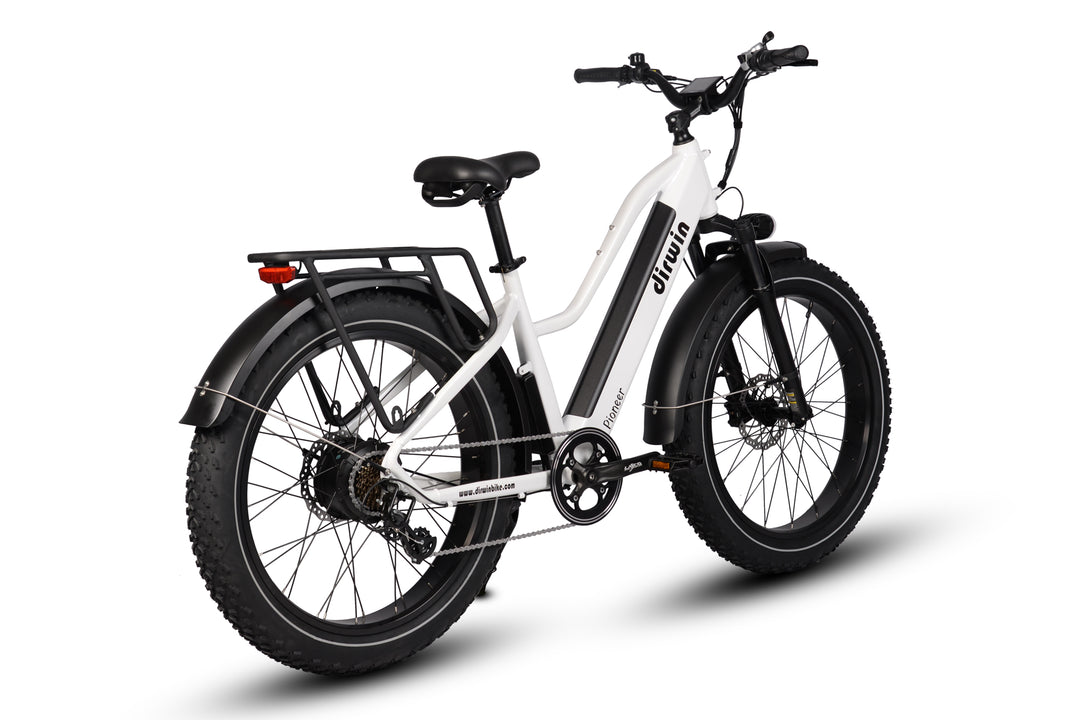

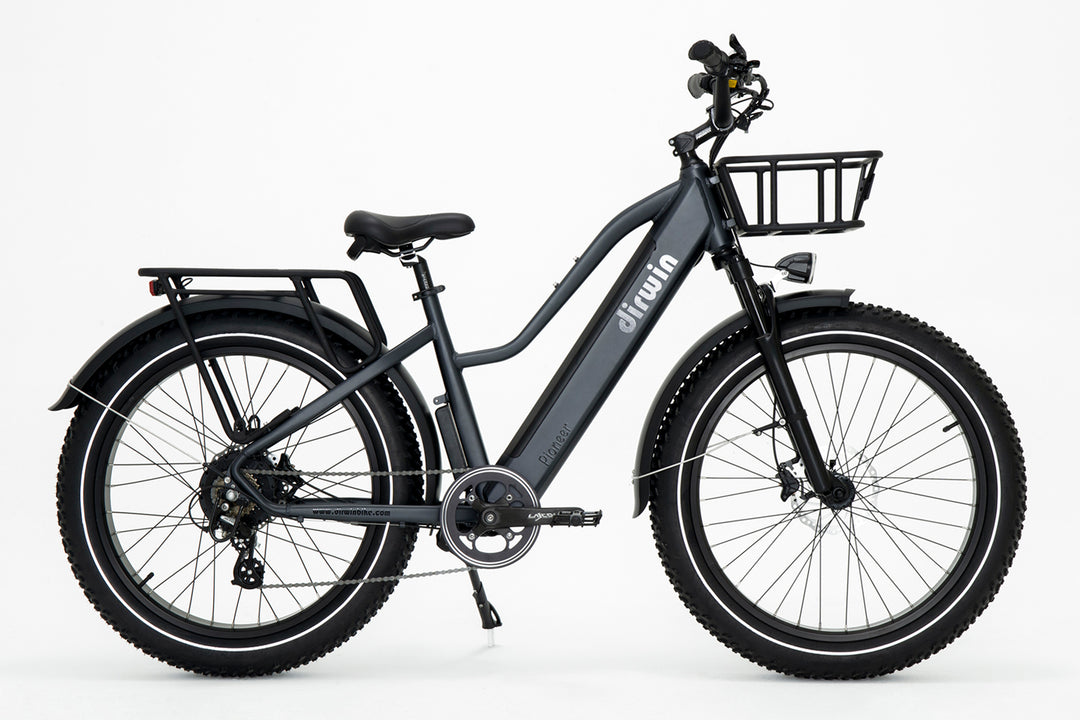

The Dirwin Pioneer was built for adventures and it shows. Absolutely everything in it is ready for anything you might face on the trails. The frame is made of 6061 Aluminium Alloy that offers superior resistance. Traction is provided by the excellent 26”x 4” wearproof tires and your ride will be smooth thanks to the hydraulic suspension fork.
The Pioneer has a powerful 750W motor and when it’s time to stop the 180mm Hydraulic Brakes are always up to the task.
COLOR SCREEN DISPLAY
The Pioneer’s bright 3.5” color LCD display offers crystal clear visibility in any weather and it features all the information you need such as Speed, Odometer, Battery level, and more.
Our fully integrated, removable battery combined with our best in class controller, which features Dirwin’s “Power Smart” technology, enables the Pacer to achieve the highest power output while consuming the least amount of electricity so that you can get up to 55 miles on a single charge!
HIGH PERFORMANCE MOTOR
Sand, gravel, or snow... Conquer all-terrain with Dirwin Pioneer's high performance 750 Watt rear-drive motor which delivers all the power you need. Its 80Nm of torque won't leave you stranded and you have absolute control of the power delivery with Shimano's 7-speed Altus gears and 5-levels of pedal assistance.

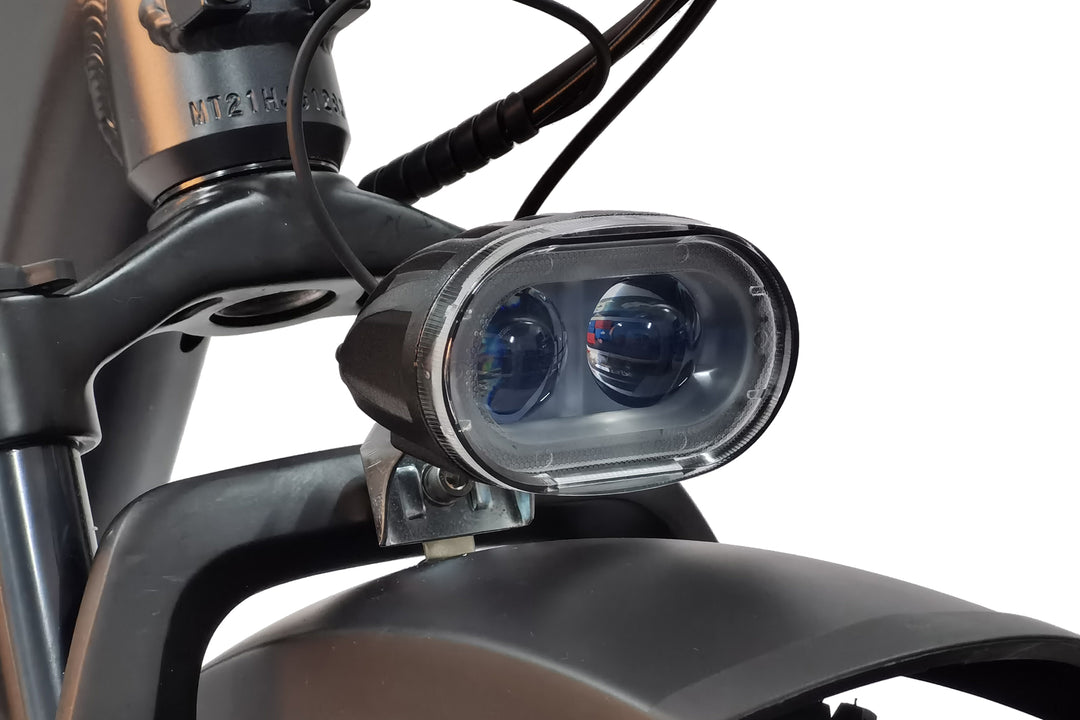

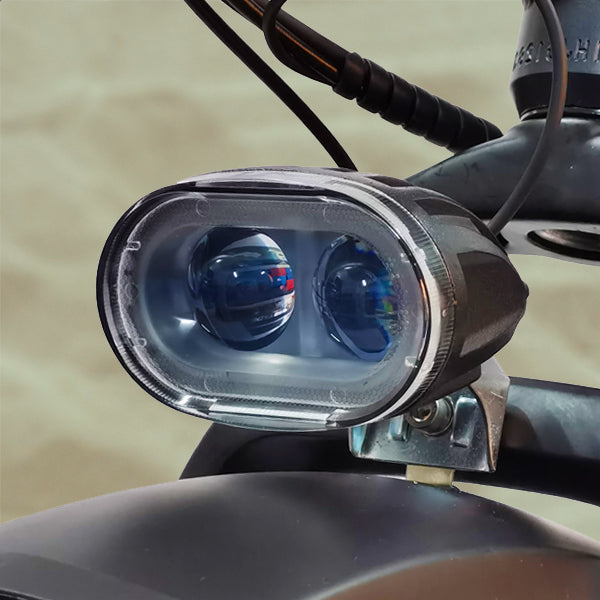

Rain or shine the powerful and bright front headlight keeps you on the right track in the most challenging conditions

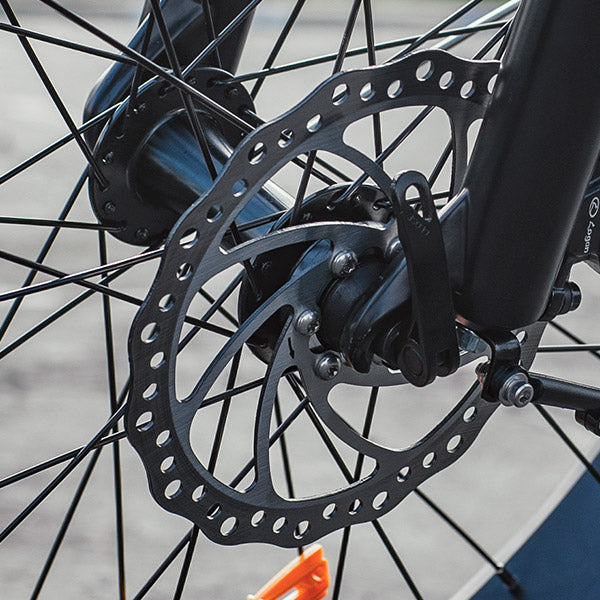

In tough terrain and fast speeds, you need to be able to trust your brakes. That's why we fitted the Pacer with powerful 180mm Hydraulic Brakes that provide you with great stopping power whenever you need it.

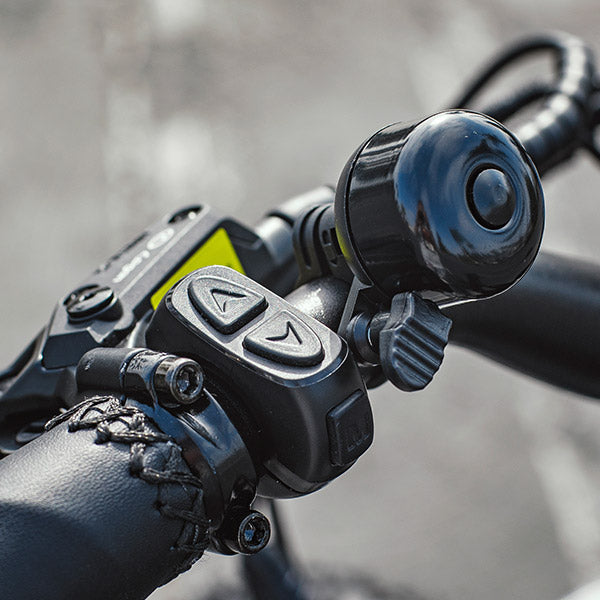

The Handlebar features all of the controls for the gear and pedal assistance system (PAS) that you need. Including the assistance level control, display, half-twist throttle, and Shimano gear shift lever. It’s even fitted with a sleek bike bell!

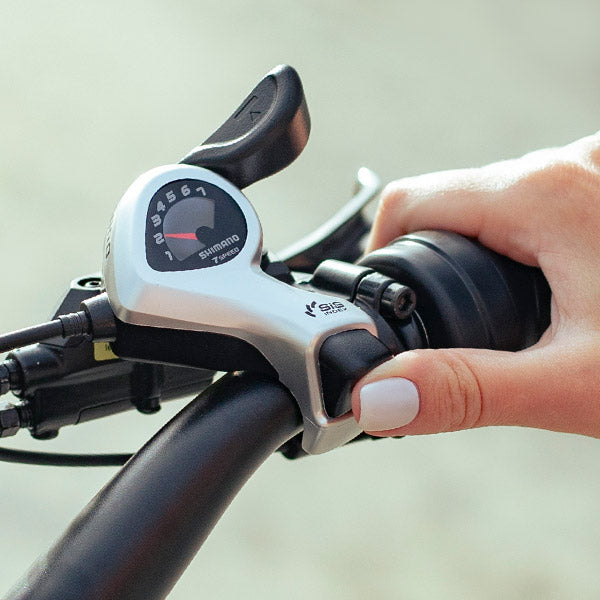

Dirwin uses only the highest quality Shimano gear systems that give you the reliability and adjustability that you need. In combination with the motor, you can easily set how fast or heavy you want to pedal.

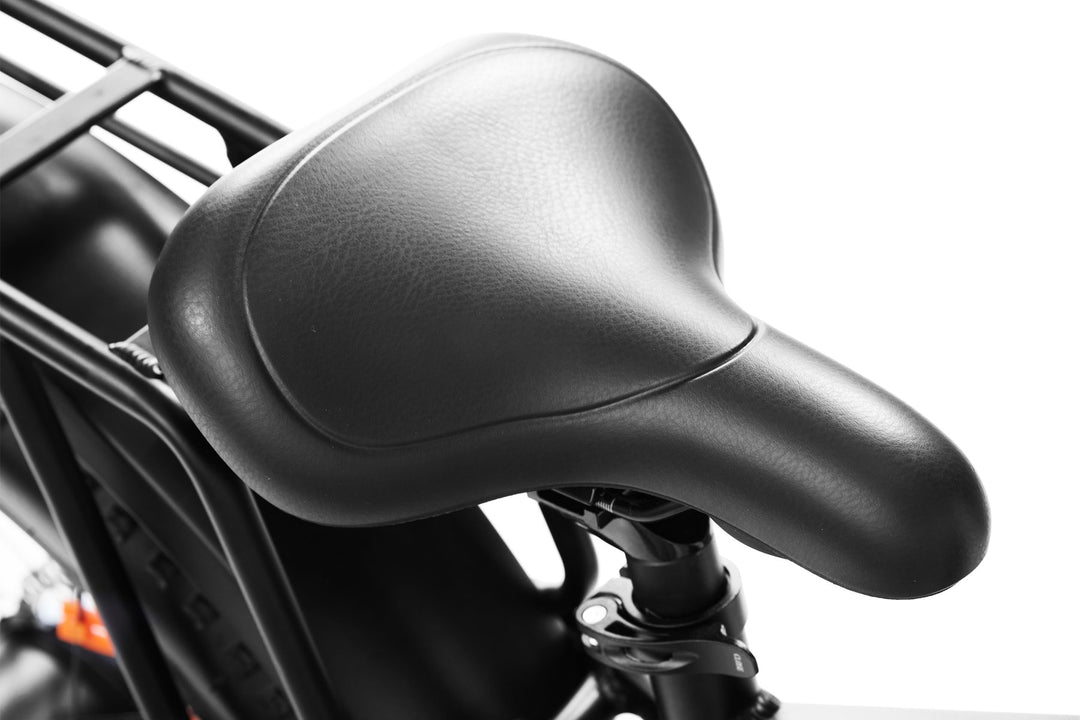

An easily adjustable saddle combined with the adjustable handlebar will make sure that anyone can find a safe and comfortable riding position.

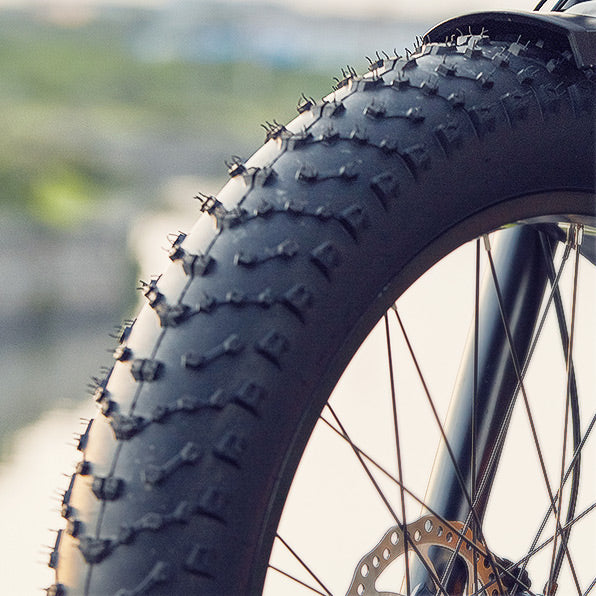

The Pioneer's Kenda 4 inch fat tires and deep treads will transform trails into roads. Take on any terrain with our wearproof fat tires.

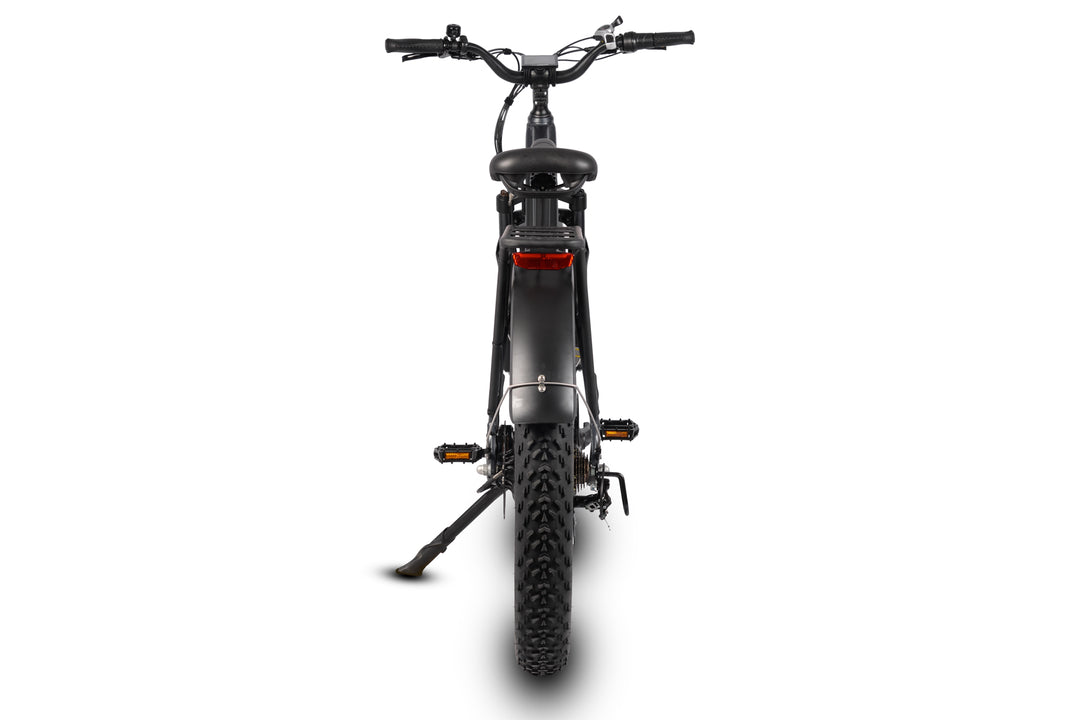

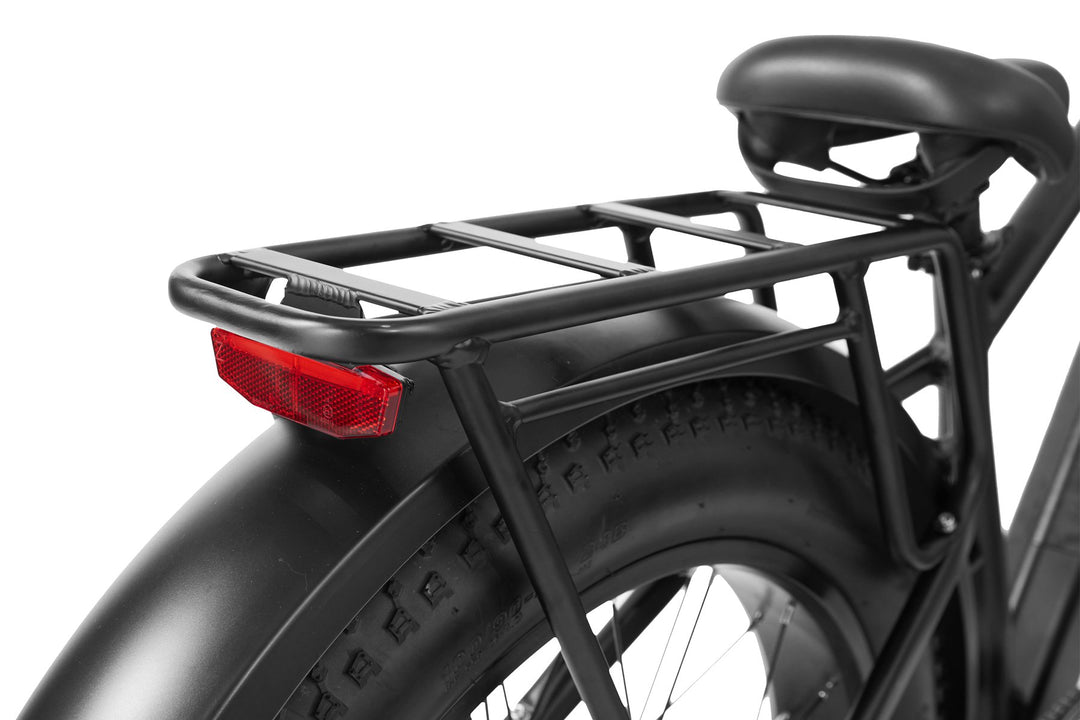

Safety first. The rear brake light is pressure activated and sports a 48V LED light that will keep you visible in the dark and in bad weather.

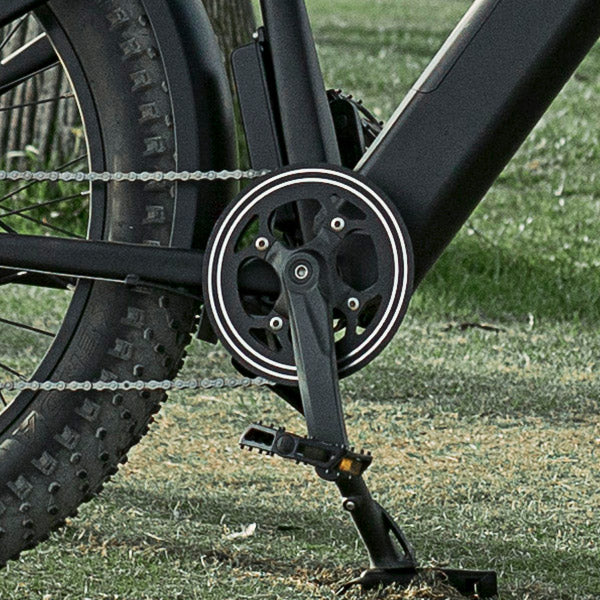

The durable aluminum crankset is built and adjusted perfectly with the Shimano gearset to protect the chain and decrease friction thus delivering the optimal pedaling experience.
Battery: 48V 15Ah Lithium Battery
Motor: 750 Watts
Bike Frame: A6061 Aluminium Alloy
Display: 3.5" TFT LCD Color Display
Brakes: 180mm Hydraulic
Derailleur: 7-Speed Shimano Altus
Freewheel: Shimano 7-Speed
Shifter: Shimano 7S
Front Fork: Deadlock Hydraulic Suspension Fork
Charger: US-Standard 2A Smart Charger
Range: 30-50+ Miles
Pedal Assist: 5-Levels
Throttle: Half Twist
Tires: 26"x 4.0" Wearproof
Saddle: HQ-Comfort Saddle
Charging Time: 5-8 Hours
Product Weight: 74.9 lbs
Total Payload Capacity: 350 lbs
Controller: 48V 22A
Chain Ring: 46T
Handle Bar: Φ22.2*700L
Seat Post: Φ30.4*300L
Seat Post Clamp: Φ35.0
Recommended Rider Height: 5.3"-6.4"
A. Total Length: 74.8"
B. Handle Bar Height: 45.5"
C. Wheelbase: 45"
D. Minimum Seat Height: 30"
E. Maximum Seat Height: 35.5"
F. Chain Stay Length: 20"
G. Standover Height: 29.5"
H. Top Tube Length: 23"
I. Wheel Diameter: 29"
J. Head Tube Length: 6"
K. Handle Bar Length: 27.5"
L. Rear Rack Height: 31.5"
M. Reach ：15.5"
